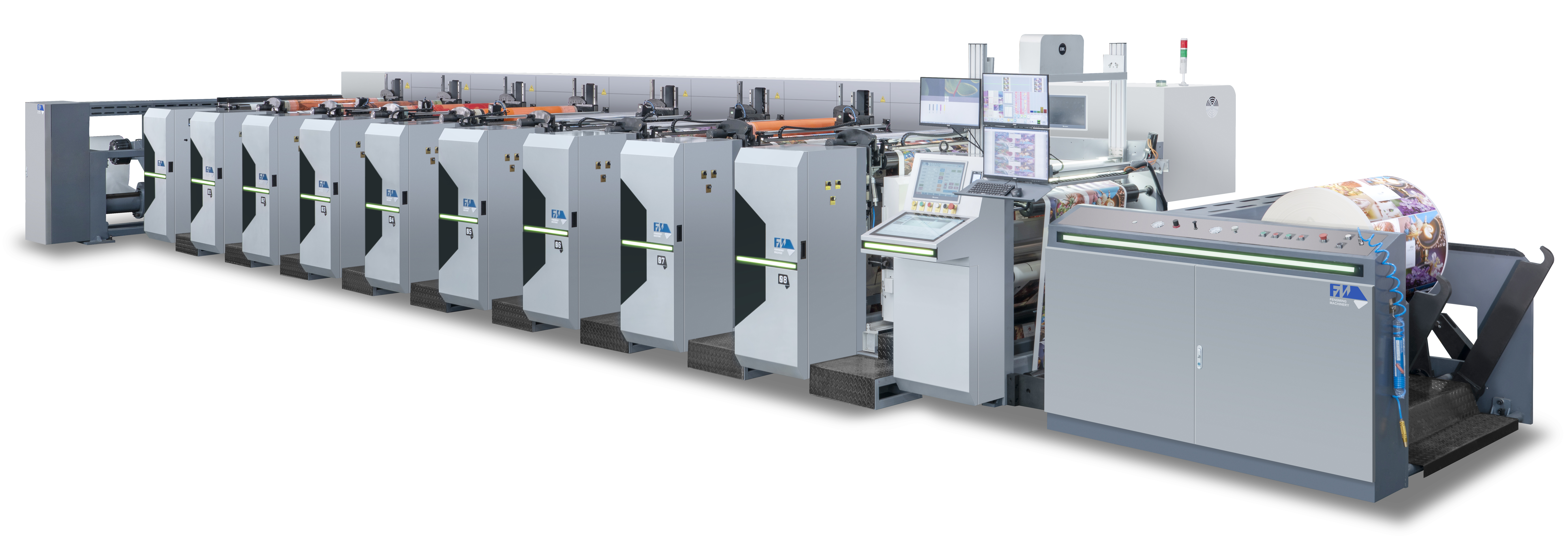

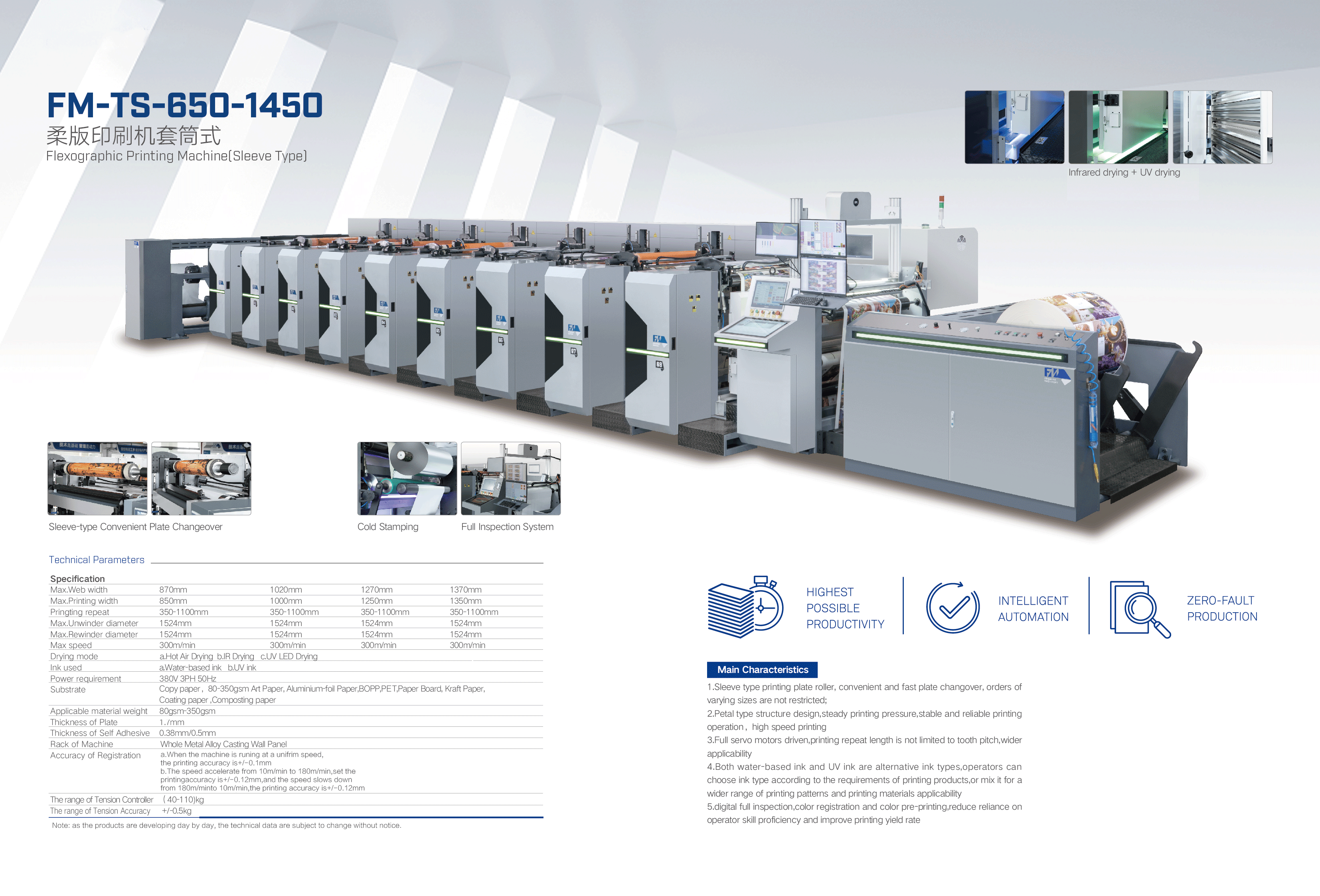

FM‑TS‑650‑1450 Sleeve Type Flexo Printing Machine

Specification

Parameters

Max.Web width

1060mm / 1160mm / 1260mm / 1360mm / 1460mm

Max.Printing width

1050mm / 1150mm / 1250mm / 1350mm / 1450mm

Printing repeat

380-1200mm / 380-1200mm / 380-1200mm / 380-1200mm / 380-1200mm

Max.Unwinder diameter

1524mm / 1524mm / 1524mm / 1524mm / 1524mm

Max.Rewinder diameter

1524mm / 1524mm / 1524mm / 1524mm / 1524mm

Max.speed

350m/min / 350m/min / 350m/min / 350m/min / 350m/min

Drying mode

a.Hot Air Drying / b.IR Drying / c.UV LED Drying / d.Natural Gas

Ink used

a.Water-based ink / b.UV ink

Power requirement

380V 3PH 50Hz

Substrate

Copy paper, 80-400gsm Art Paper, Paper Board, Kraft Paper, Coating paper, Compositing paper

Applicable material weight

30gsm-350gsm

Thickness of Plate

1.7mm

Thickness of Self Adhesive

0.38mm/0.5mm

Rack of Machine

Whole Metal Alloy Casting Wall Panel

Accuracy of Registration

a.When the machine is running at a uniform speed, the printing accuracy is ±0.1mmb.When the printing speed is from 10m/min to 180m/min, the printing accuracy is ±0.1mmc.When printing speed decreases from 180m/min to 10m/min, the printing accuracy is ±0.15mm

The range of Tension Controller

140-160kg

The range of Tension Accuracy

+/-0.5kg

Plate cylinder sleeve mandrel diameter

108.342mm

Anilox roller sleeve mandrel diameter

152.4mm

Anilox roller sleeve mandrel diameter

156.088mm

Note

As the products are developing day by day, the technical data are subject to change without notice.
