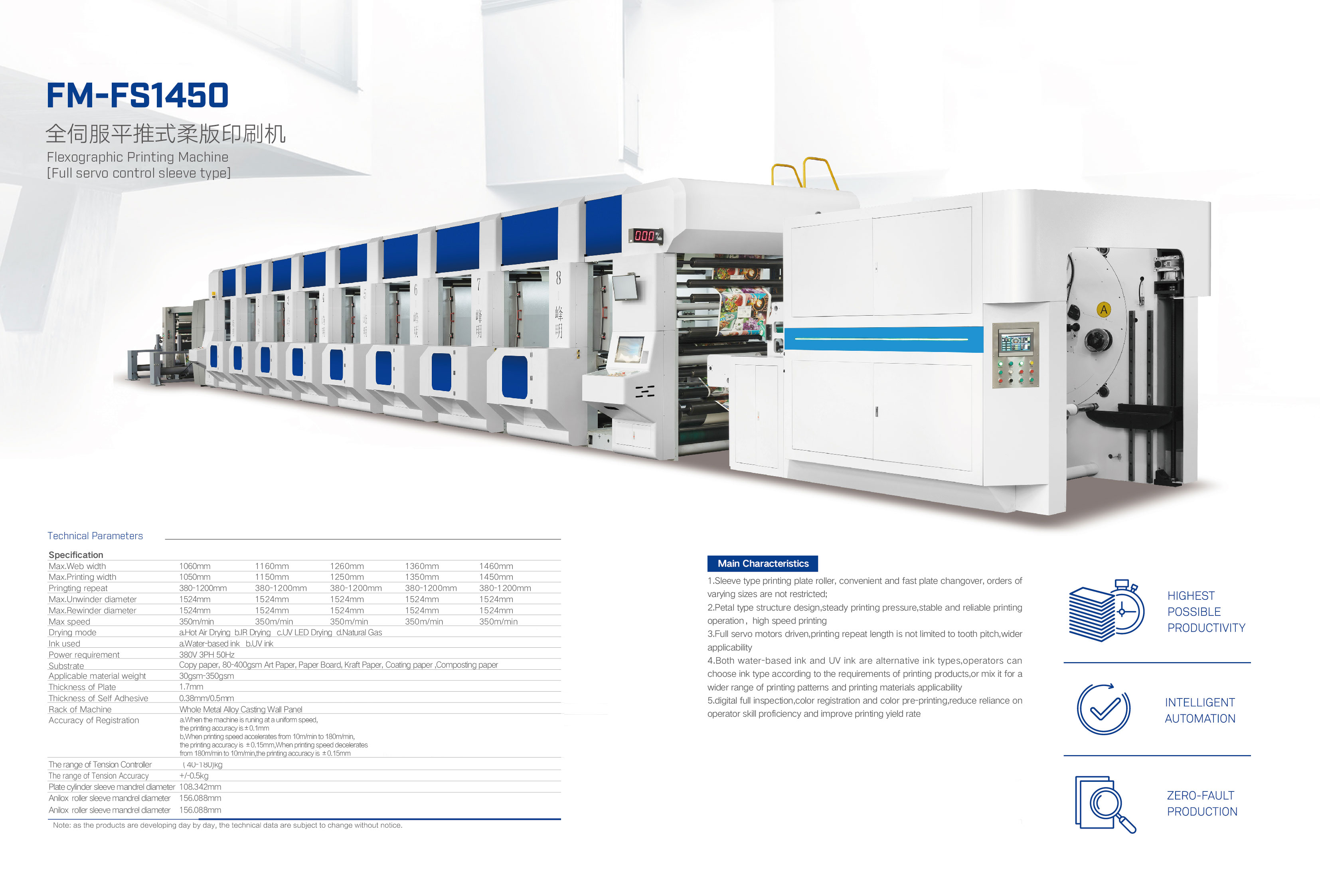

Specification | Parameters |
Max.Web width | 1060mm / 1160mm / 1260mm / 1360mm / 1460mm |
Max.Printing width | 1050mm / 1150mm / 1250mm / 1350mm / 1450mm |
Printing repeat | 380-1200mm / 380-1200mm / 380-1200mm / 380-1200mm / 380-1200mm |
Max.Unwinder diameter | 1524mm / 1524mm / 1524mm / 1524mm / 1524mm |
Max.Rewinder diameter | 1524mm / 1524mm / 1524mm / 1524mm / 1524mm |
Max.speed | 350m/min / 350m/min / 350m/min / 350m/min / 350m/min |
Drying mode | a.Hot Air Drying / b.IR Drying / c.UV LED Drying / d.Natural Gas |
Ink used | a.Water-based ink / b.UV ink |
Power requirement | 380V 3PH 50Hz |
Substrate | Copy paper, 80-400gsm Art Paper, Paper Board, Kraft Paper, Coating paper, Compositing paper |
Applicable material weight | 30gsm-350gsm |
Thickness of Plate | 1.7mm |
Thickness of Self Adhesive | 0.38mm/0.5mm |
Rack of Machine | Whole Metal Alloy Casting Wall Panel |
Accuracy of Registration | a.When the machine is running at a uniform speed, the printing accuracy is ±0.1mmb.When the printing speed is from 10m/min to 180m/min, the printing accuracy is ±0.1mmc.When printing speed decreases from 180m/min to 10m/min, the printing accuracy is ±0.15mm |
The range of Tension Controller | 140-160kg |
The range of Tension Accuracy | +/-0.5kg |
Plate cylinder sleeve mandrel diameter | 108.342mm |
Anilox roller sleeve mandrel diameter | 152.4mm |
Anilox roller sleeve mandrel diameter | 156.088mm |
Note | As the products are developing day by day, the technical data are subject to change without notice. |
