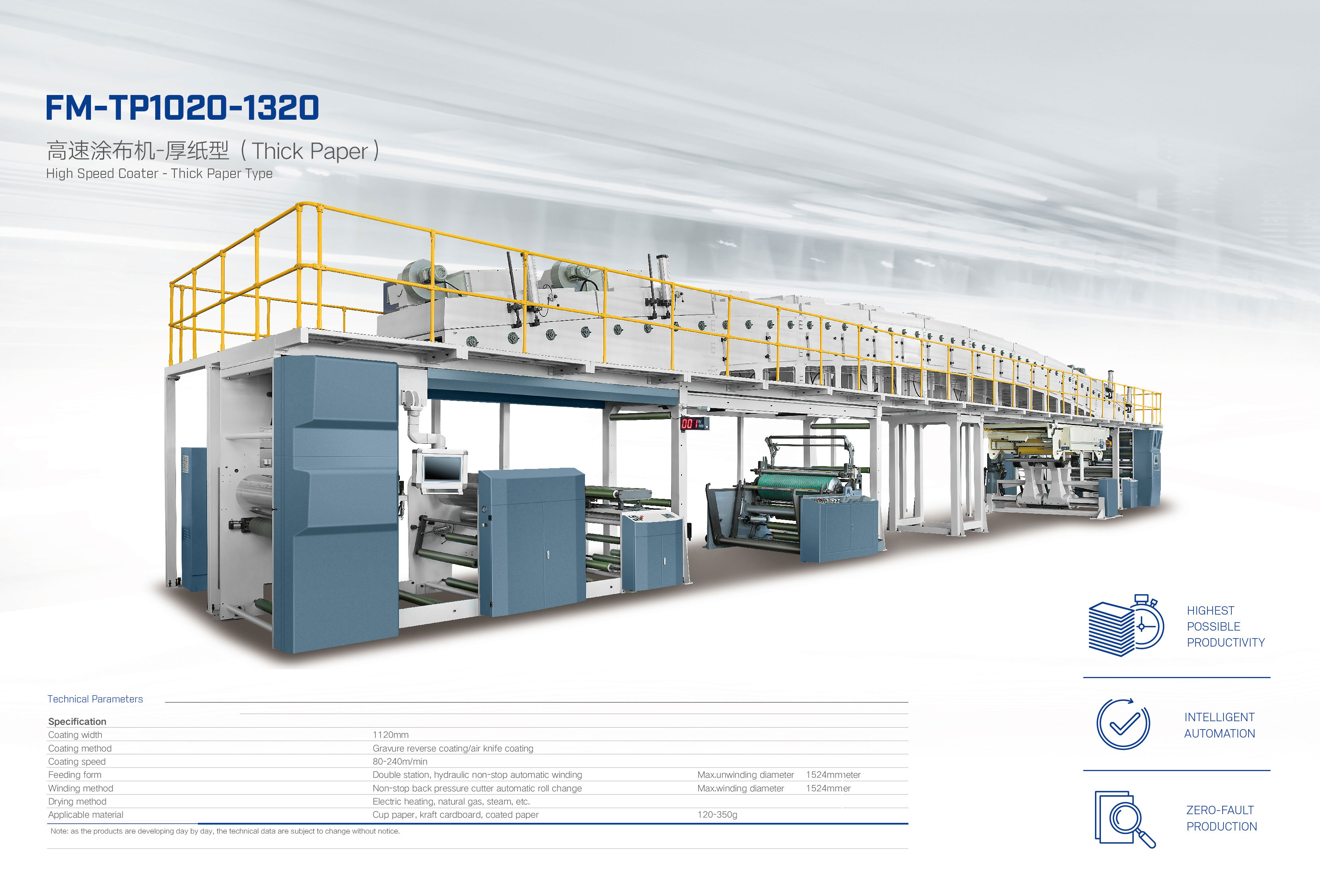

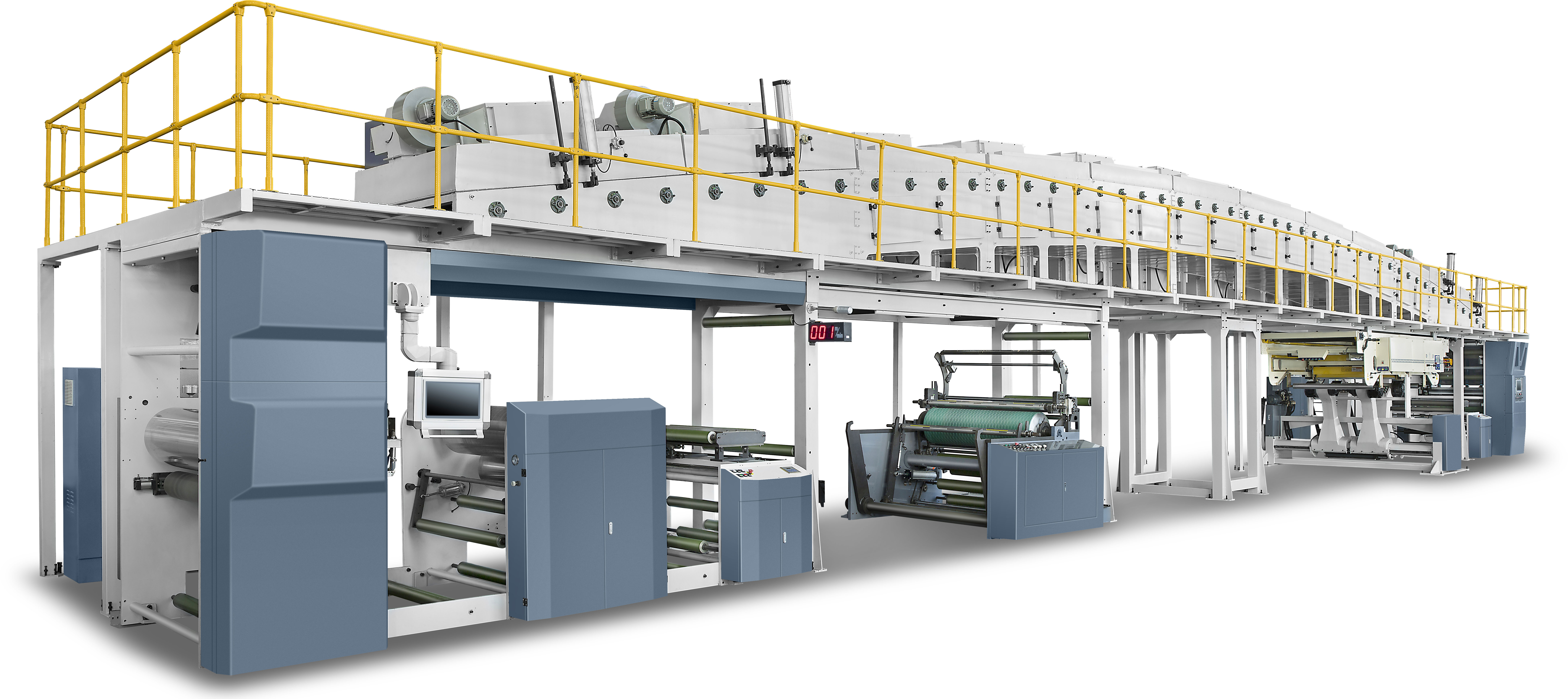

FM-TP1020-1320 High-speed Coating Machine - Thick Paper Type

Specification

Data

Coating width

1120mm

Coating method

Gravure reverse coating / air knife coating

Coating speed

80-240m/min

Feeding form

Double station, hydraulic non-stop automatic winding

Max.unwinding diameter

1524mm

Winding method

Non-stop back pressure cutter automatic roll change

Max.winding diameter

1524mm

Drying method

Electric heating, natural gas, steam, etc.

Applicable material

Cup paper, kraft cardboard, coated paper

Applicable material weight

120-350g

Note

As the products are developing day by day, the technical data are subject to change without notice.
